CWX-20p

CWX-20P-1.0D

Product Series：CWX

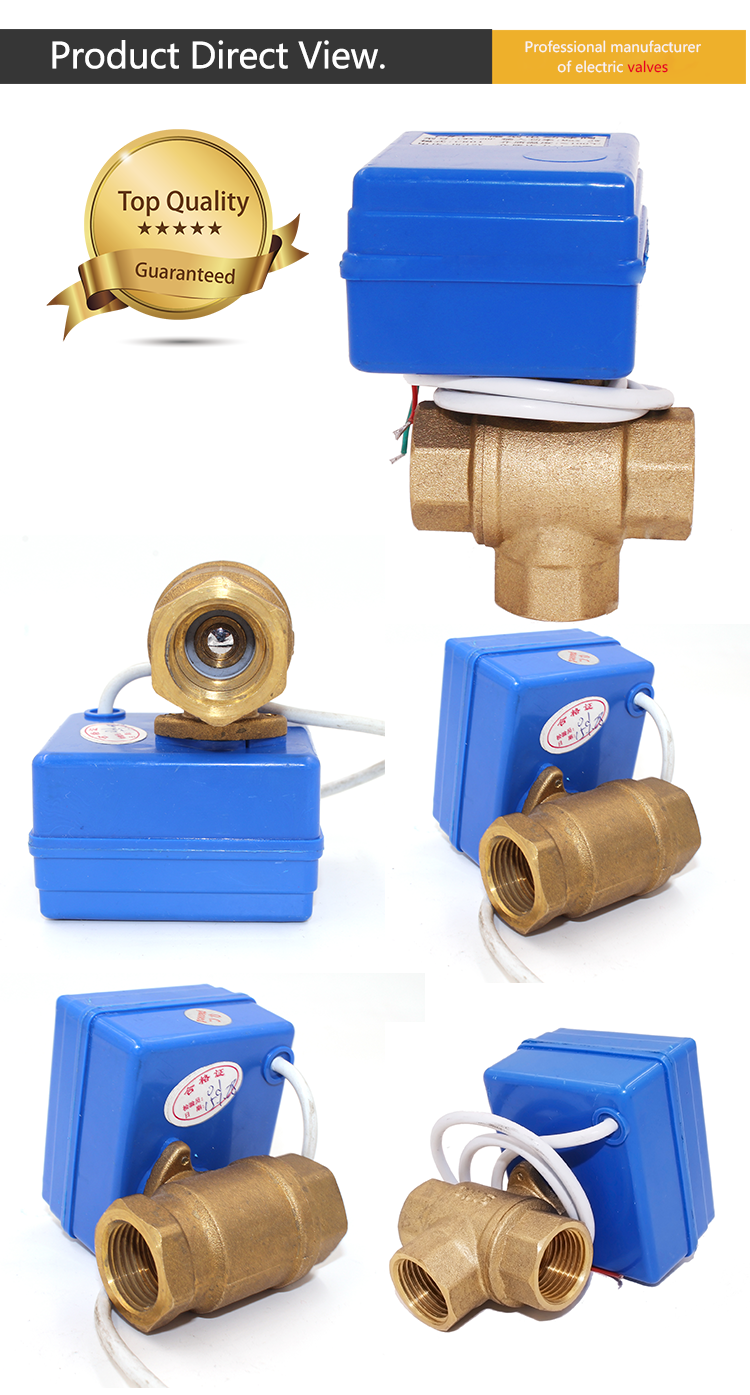

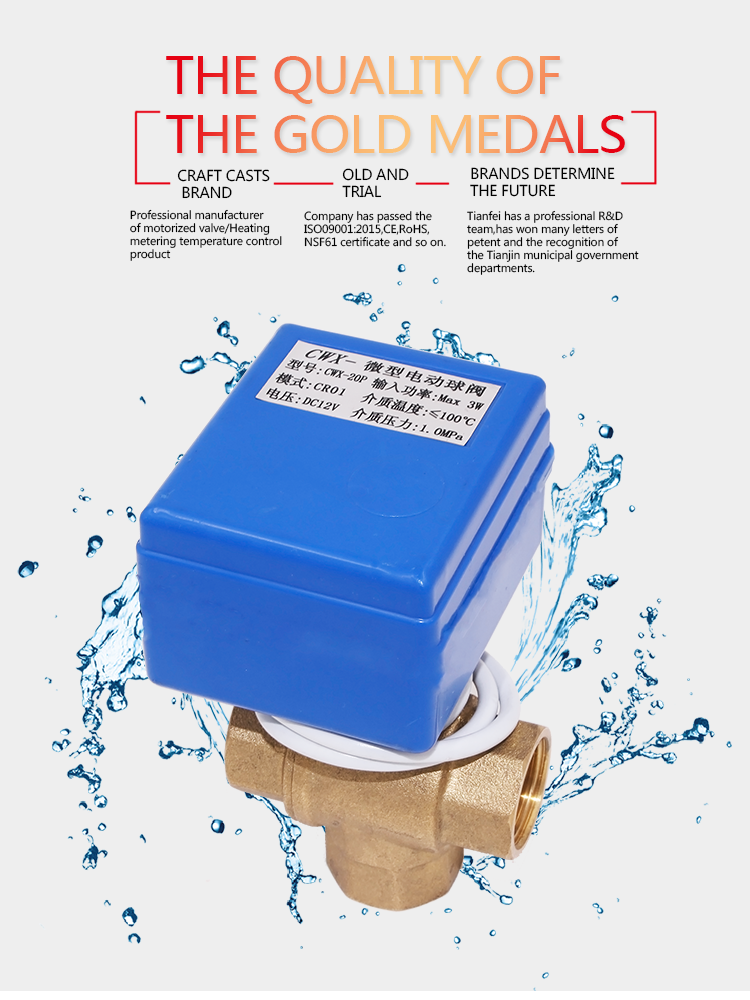

Product Name ：CWX-20P-1.0A Mini Electric ball valve

Feature (产品特点)

1. All-metal gear reducer.

2. The output torque is large, especially for the piping system with large scale.

3. Small size, compact structure, compact appearance and various assembly methods.

4. Patented technology anti-scale body design can delay the scaling time.

5. Good sealing performance, sealing grade IP65.

Application（应用）
1.The sun empties the air, preventing water pipes from cracking in winter.

2. Washing machine drainage, water meter front valve.

3. Different flows to the hydrophobic control valve are used in various fields.

Technical Parameters（技术参数）

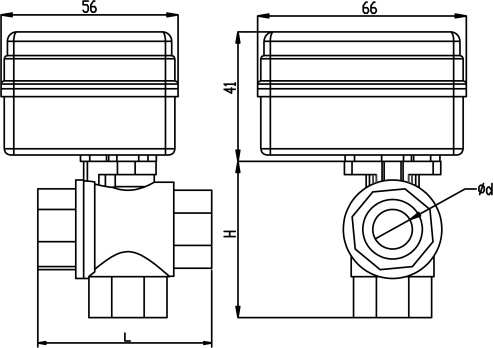

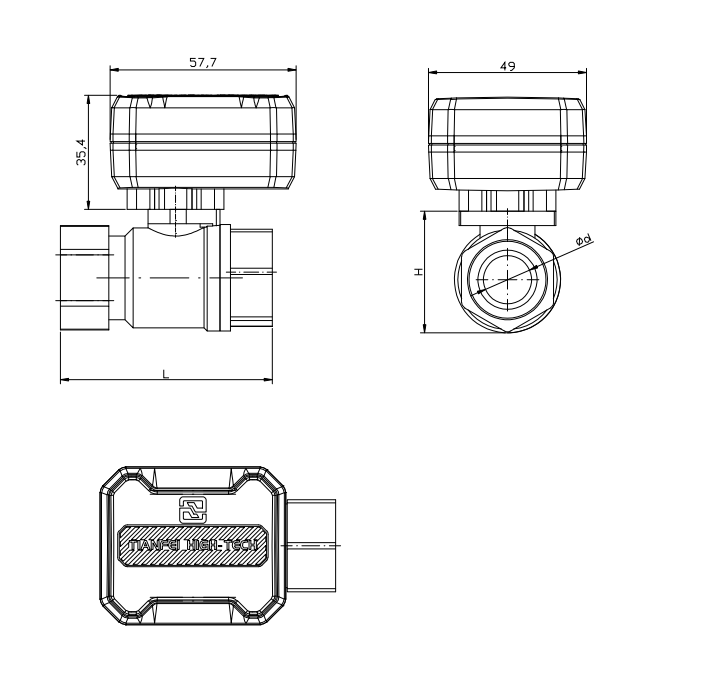

Shape Diagram:

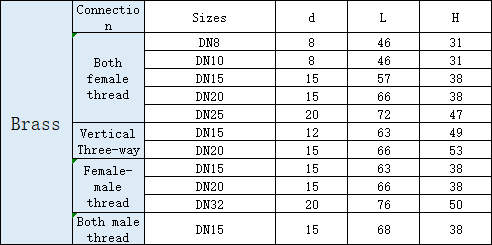

Outline dimension table（mm）:

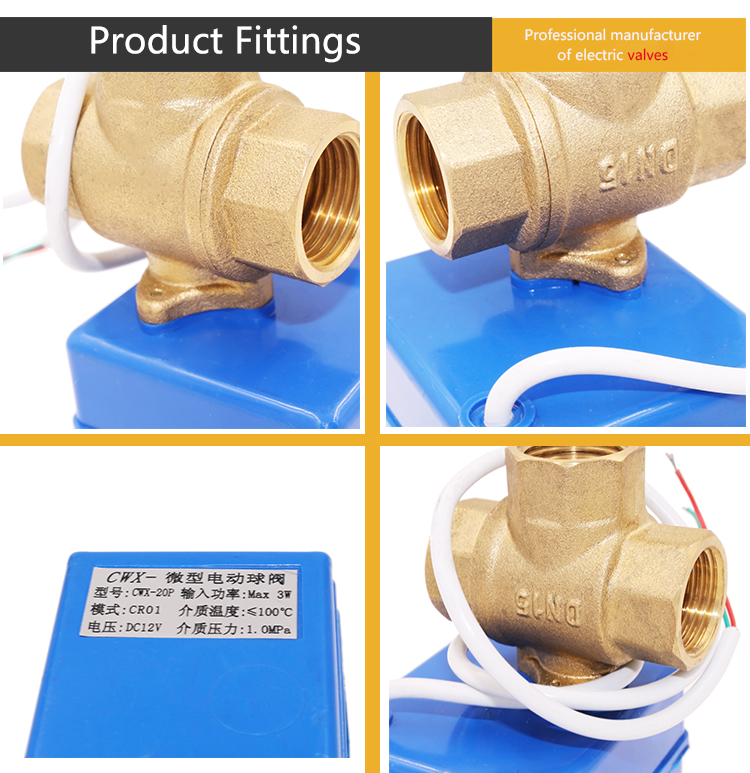

Main Parts

(参见附件阀体尺寸表中)

Wiring Daigram(接线方式)

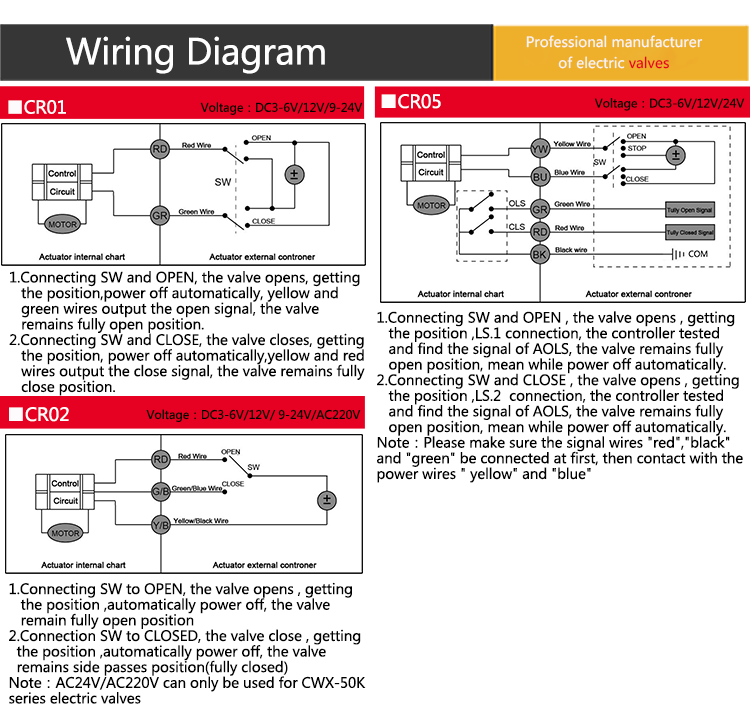

CWX-Series Wiring Diagram（13 Versions）

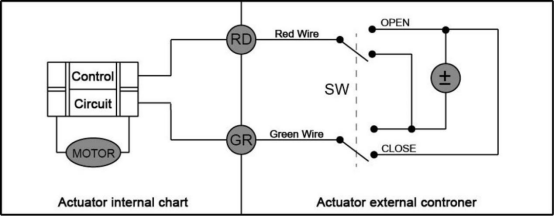

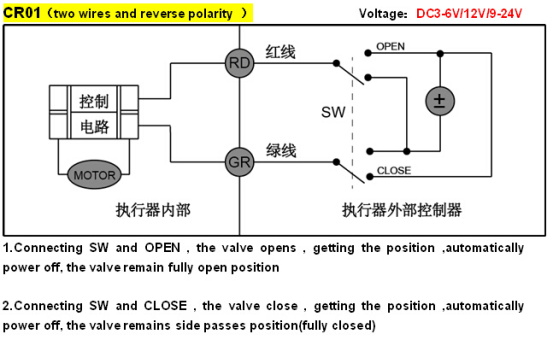

CR01（two wires and reverse polarity ）

Voltage：DC3-6V/12V/9-24V

1.Connecting SW to OPEN , the valve opens , getting the position ,automatically

power off, the valve remain fully open position

2.Connection SW to CLOSE , the valve close , getting the position ,automatically

power off, the valve remains side passes position(fully closed)

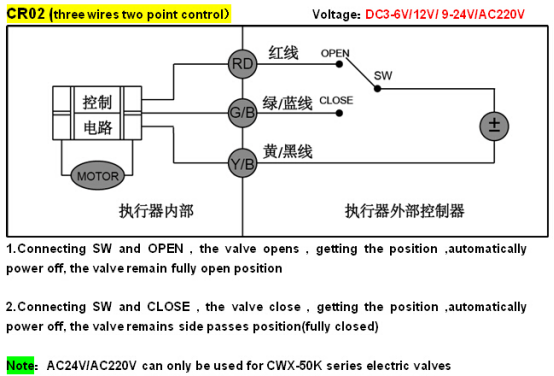

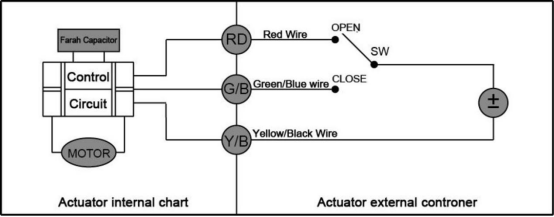

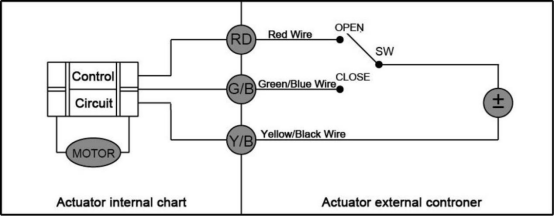

CR02 (three wires two point control）

Voltage：DC3-6V/12V/ 9-24V/AC220V

1.Connecting SW to OPEN, the valve opens , getting the position ,automatically power

off, the valve remain fully open position

2.Connection SW to CLOSED, the valve close , getting the position ,automatically power

off, the valve remains side passes position(fully closed)

Note：AC24V/AC220V can only be used for CWX-50K series electric valves

CR02+（two wires and fail-safe/power-off return）

Voltage：DC 9-24V

1.Connecting SW to OPEN, the valve opens , getting the position and automatically

power off, the valve remain fully open position

2.Disconnecting SW to CLOSE, the valve close , getting the position and automatically

power off, the valve remains side passes position(fully closed)

Note：As the power-off and valve will be return automatically,and RD/G(B)/Y(B) 3wires

can not be power-on together to keep valve safe

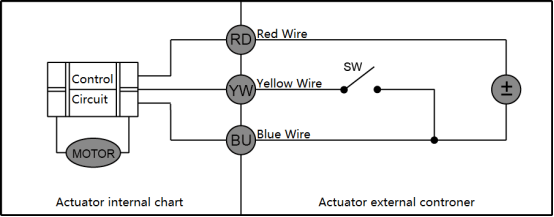

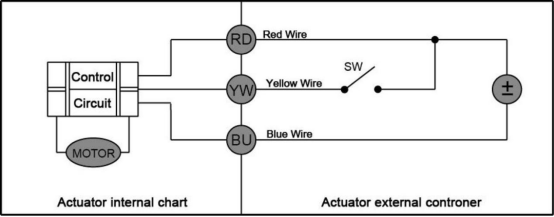

CR03（three wires one control）

Voltage：DC3-6V/12V /ADC9-24V /AC220V

1.Connecting SW, the valve opens , getting the position ,automatically power off, the

valve remain fully open position

2.Disconnecting SW, the valve close , getting the position ,automatically power off, the

valve remains side passes position(fully closed)

Note：When power is DC voltage and Red Wires is “+”，Blue wire is “—”

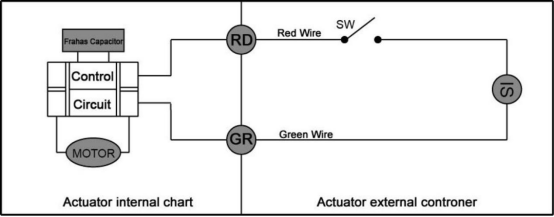

CR04（two wires and fail-safe/power-off return） Voltage：DC3-6V/ADC9-24V/AC220V

1.SW connecting ,the valve open, getting the position and the power off automatically,

the valve remains fully open/close position

2.SW disconnecting ,the valve close, getting the position and power off automatically,

the valve remains fully open/close position

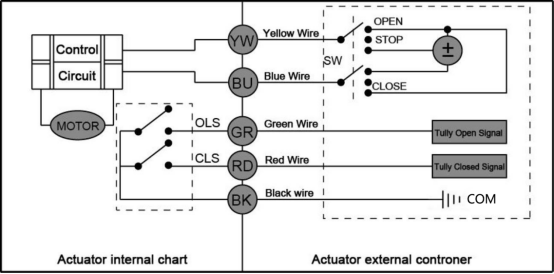

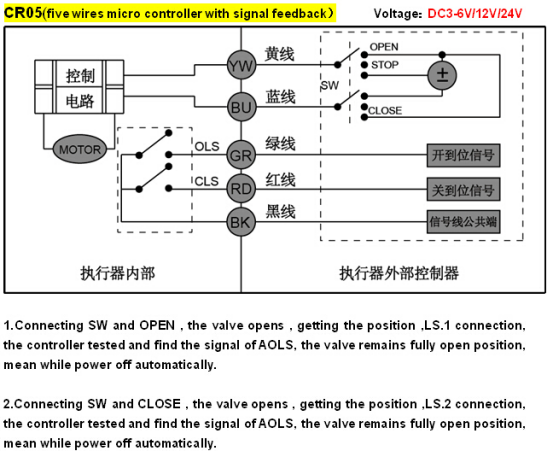

CR05(five wires micro controller with signal feedback）

Voltage：DC3-6V/12V/24V

1.Connecting SW and OPEN , the valve opens , getting the position ,LS.1 connection,

the controller tested and find the signal of AOLS, the valve remains fully open position,

mean while power off automatically.

2.Connecting SW and CLOSE , the valve opens , getting the position ,LS.2 connection,

the controller tested and find the signal of AOLS, the valve remains fully open position,

mean while power off automatically.

Note：Please make sure the signal wires "red","black" and "green" be connected at first,

then contact with the power wires " yellow" and "blue"

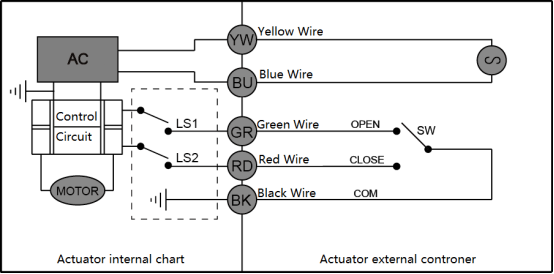

CR06 wiring diagram (five wires)                   Volt：220V

1. Connecting SW and OPEN,the valve opens,getting the position,automatically power off,the valve remains fully open position.

2. Connecting SW and CLOSE,the valve close,getting the position,automatically power off,the valve remains fully close position.

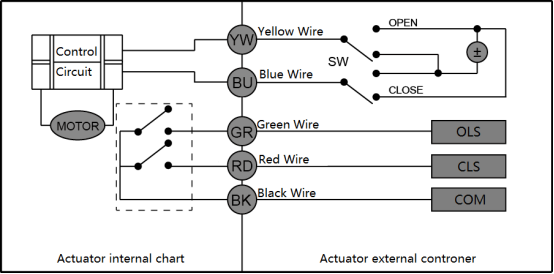

CR01S Wiring Diagram (Five wires with feedback)   Voltage DC3-6V

1. Connecting SW to OPEN, the valve opens, getting the position, automatically power off, the valve remain fully open position, meanwhile output open position signal

2. Connecting SW to CLOSE, the valve close, getting the position, automatically power off, the valve remains fully close position, meanwhile output close position signal

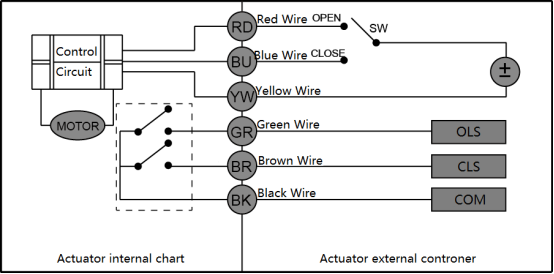

CR02S(Six wires with feedback) Voltage DC3-6V

1. Connecting SW to OPEN, the valve opens, getting the position, automatically power off, the valve remain fully open position, meanwhile output open position signal

2. Connecting SW to CLOSE, the valve close, getting the position, automatically power off, the valve remains fully close position, meanwhile output close position signal

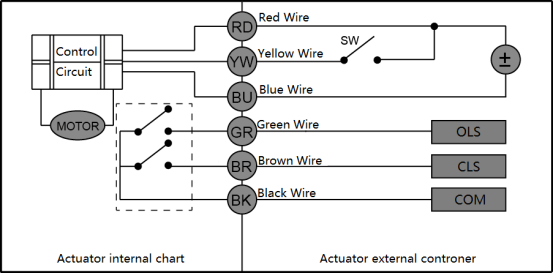

CR03S(Six wires with feedback)           Voltage DC3-6V/ADC9-24V/AC220V

1. Connecting SW, the valve opens, getting the position, automatically power off, the valve remain fully open position, meanwhile output open position signal

2. Disconnecting SW, the valve close, getting the position, automatically power off, the valve remains fully close position, meanwhile output close position signal

Notes: When power is DC voltage and Red Wires is “+”, Blue wire is “-“

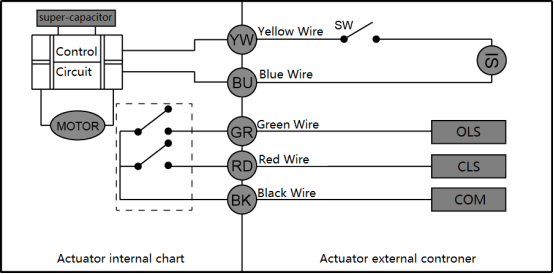

CR04S (Five wires with feedback)   Voltage DC3-6V

1. SW connecting, the valve open, getting the position and the power off automatically, the valve remain fully open/close position, meanwhile output open position signal

2. SW disconnecting, the valve close, getting the position and the power off automatically, the valve remain fully open/close position, meanwhile output close position signal

CR03A( Three wires one control with “-“)     Voltage ADC9-24V

1. Connecting SW, the valve opens, getting the position, automatically power off, the valve remain fully open position, meanwhile output open position signal

2. Disconnecting SW, the valve close, getting the position, automatically power off, the valve remains fully close position, meanwhile output close position signal

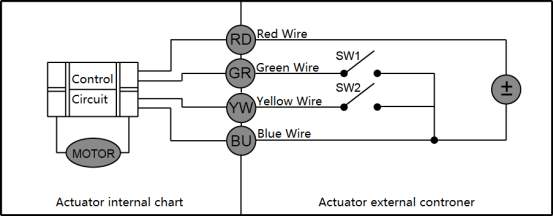

CR03T(Angle adjustable)     Voltage DC9-24V

1. SW1 open, SW2 open, valve full close, getting the position valve remain fully close position

2. SW1 close, SW2 open 30 degree, valve full close, getting the position valve remain open 30 degree position

3. SW1 close, SW2 open 60 degree, valve full close, getting the position valve remain open 60 degree position

4. SW1 close, SW2 close, valve full open, getting the position valve remain fully open position
