Product Series：CTF

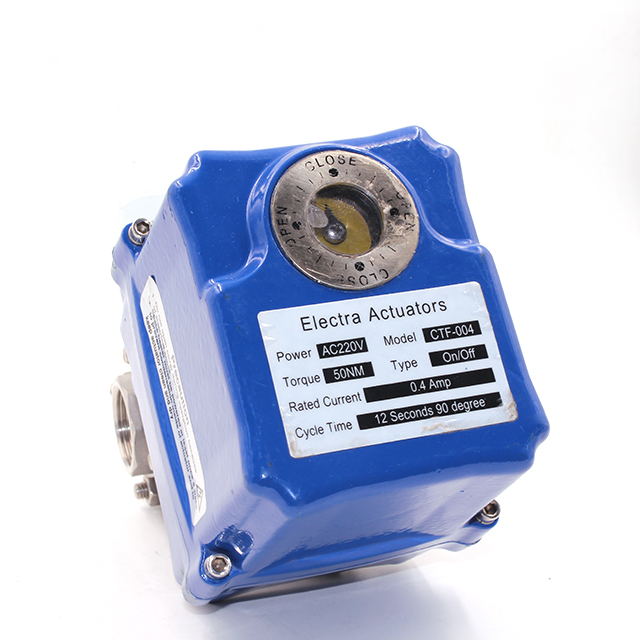

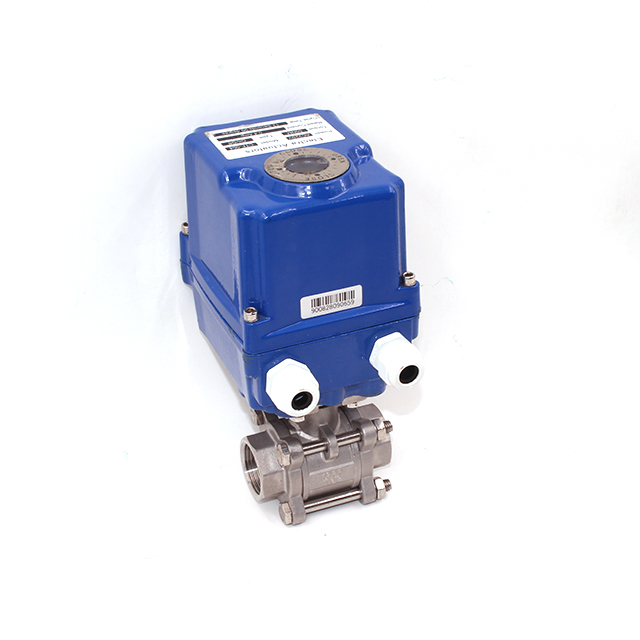

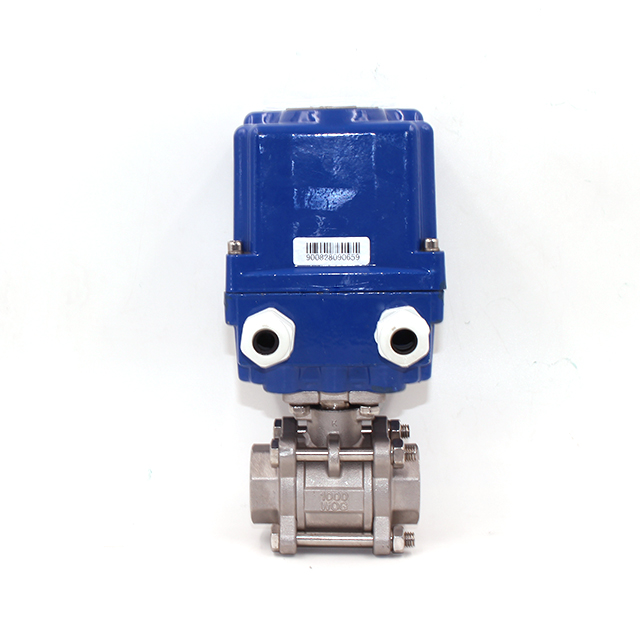

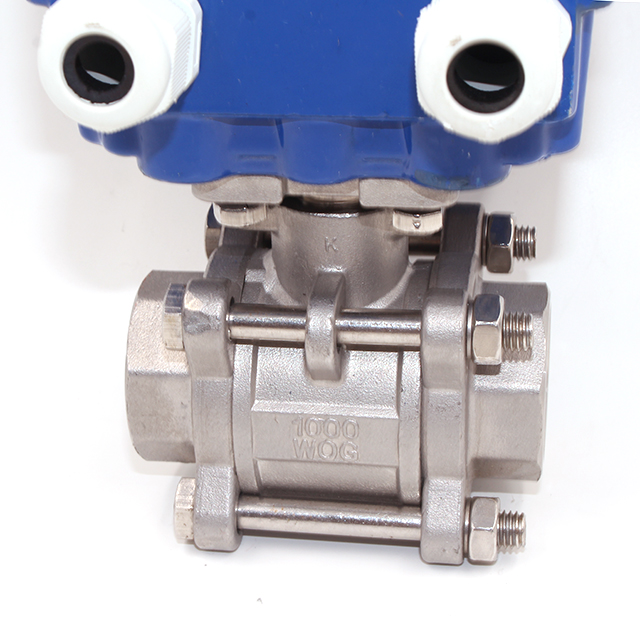

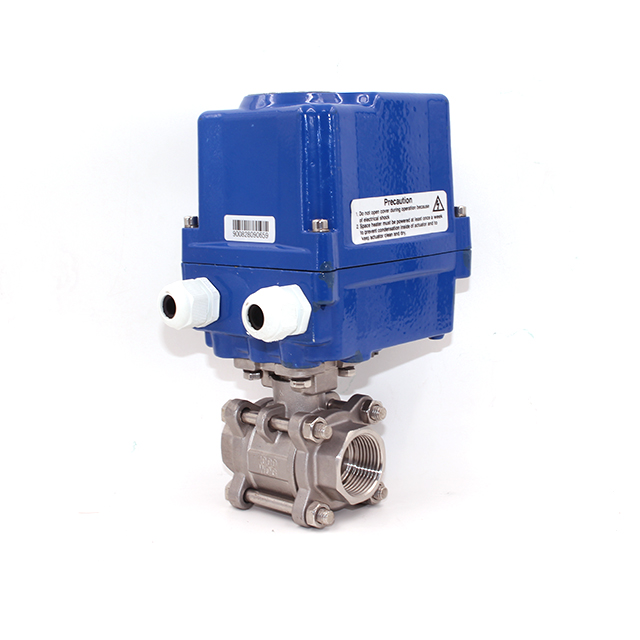

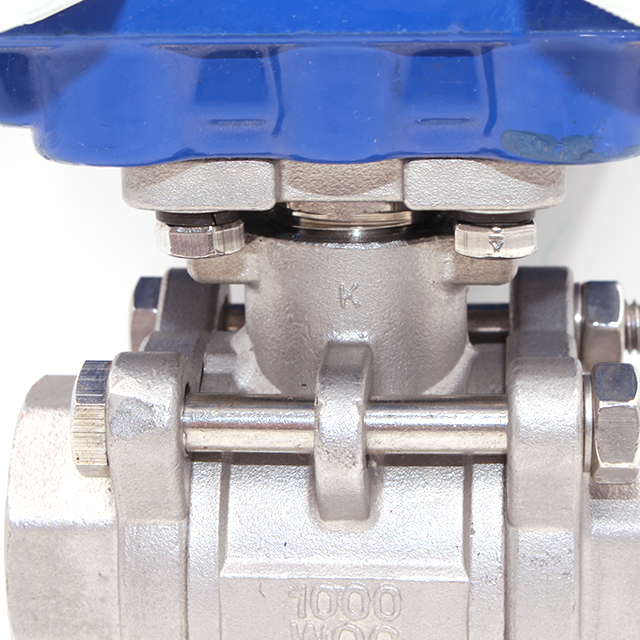

Product name: CTF004 motorized valve
Product features:(产品特点：)
1.The housing be made of die-cast aluminum, with metal texture, compact structure, beautiful appearance, light and small size, shockproof and crash-proof
2.Adopts the machined gear drive mechanism, large output torque, stable operation, low noise
3.Electric and manual override design, with a transparent window, can know the valve open/close situation at a glance
4.Actuator with ISO5211 connection with the different type valve directly connected, high transmission efficiency,the first choice for smart meter
5.Double sealing structure,IP65 protection class
6.Can use active and passive signal output
Application:适用范围
Pure water and raw water pipeline systems, drainage and sewage, salt water and sea water pipeline systems, acid-base and chemical solution systems and so on
Technical parameter 技术参数
Model | Voltage | Motor power | Working current | Output torque | Working pressure | Environment temperature | Open/close time |
CTF-004 | AC220v | 25W | 1000mA | 40NM | 0-1.6MPa | 0-60℃ | 18-25s |
Valve size | Ball valve(DN15-65),butterfly valve(DN50-DN125) |
Valve material | UPVC,CPVC,cast steel,cast iron,stainless steel |

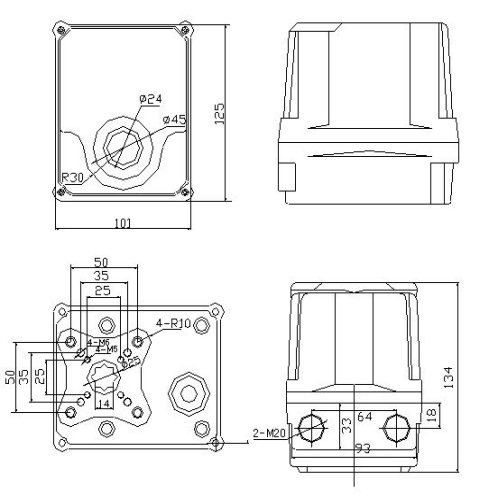

产品示意图
能搭配的接线图有2个：
CTB资料中：CR11 CR12

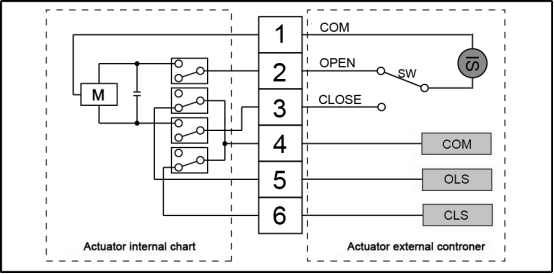

CR11 （AC passive contact type） Voltage：AC220V
1. Connecting SW and OPEN, the valve opens, getting the position,power off automatically, black and green wires output the open signal, the valve remains fully open position.
2. Connecting SW and CLOSE, the valve closes, getting the position, power off automatically,black and red wires output the close signal, the valve remains fully close position

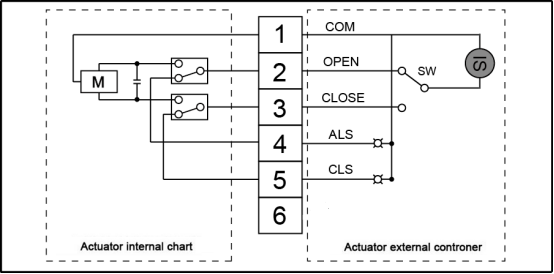

CR12 （ AC active contact type ） Voltage：AC220V
1.Connecting SW and OPEN, the valve opens, getting the position,power off automatically, yellow and green wires output the open signal, the valve remains fully open position.
2.Connecting SW and CLOSE, the valve closes, getting the position, power off automatically,yellow and red wires output the close signal, the valve remains fully close position

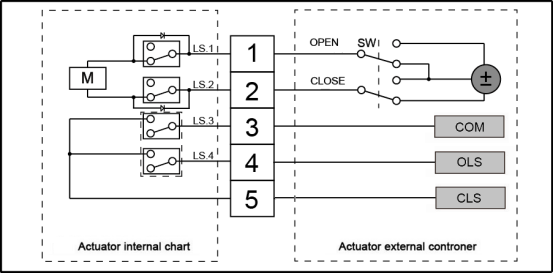

CR13 （DC passtive contact type ） Voltage：AC220V
1.Connecting SW and OPEN, the valve opens, getting the position,power off automatically, yellow and green wires output the open signal, the valve remains fully open position.
2.Connecting SW and CLOSE, the valve closes, getting the position, power off automatically,yellow and red wires output the close signal, the valve remains fully close position

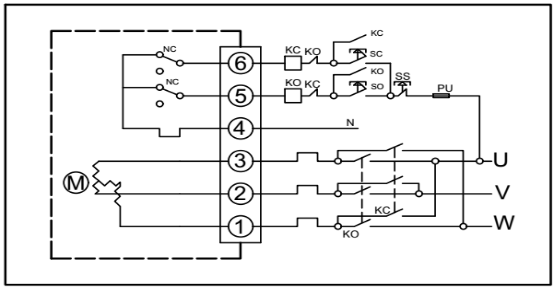

AC380v （standard wiring diagram ）
1.KO close,valve open,getting the position,internal automatically power off
2.KC close,valve close,getting the position,internal automatically power off
AC380v （passive contact type wiring diagram ）
1.KO close,valve open,getting the position,internal automatically power off,terminal 8 output open position signal
2.KC close,valve close,getting the position,internal automatically power off,terminal 9 output close position signal
Intelligent modulating type 智能调节型(4-20mA/0-10V)
1. Power(L&N)
2. Input signal,output signal
